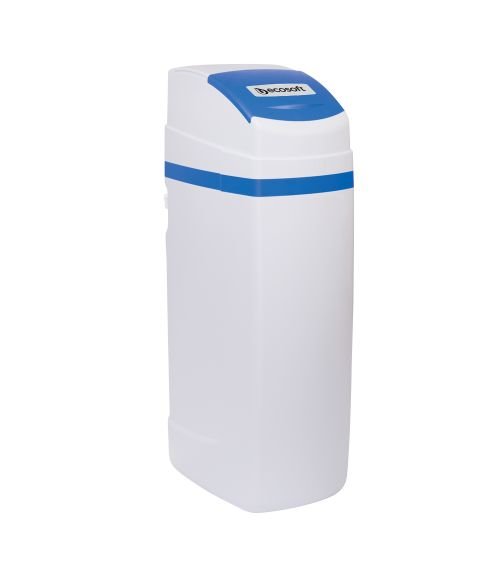

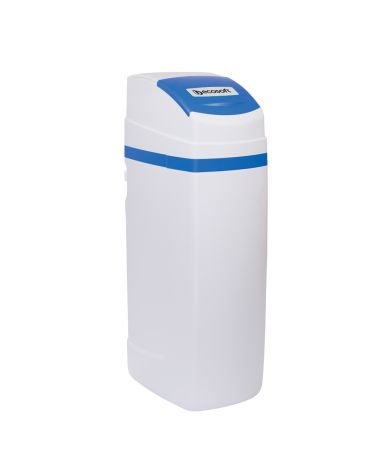

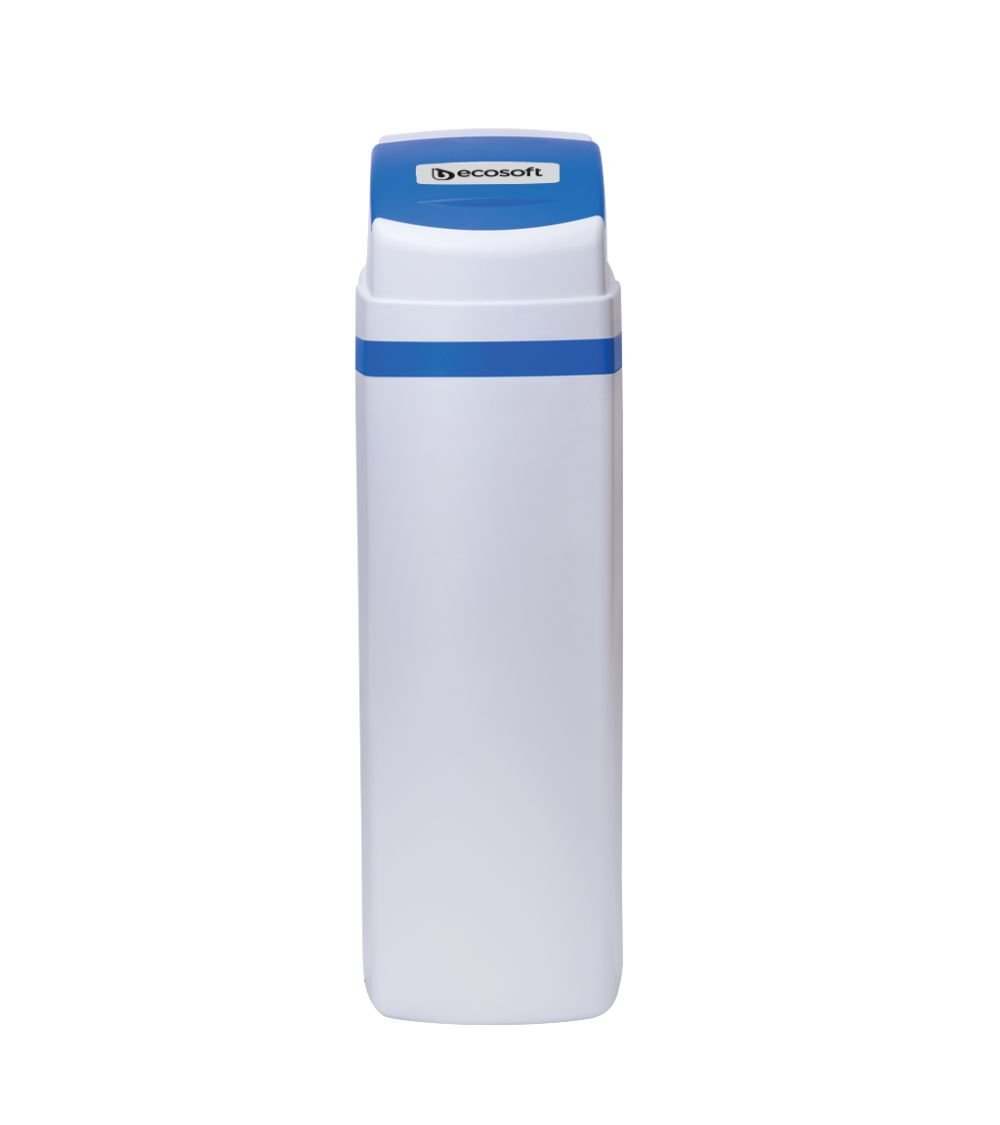

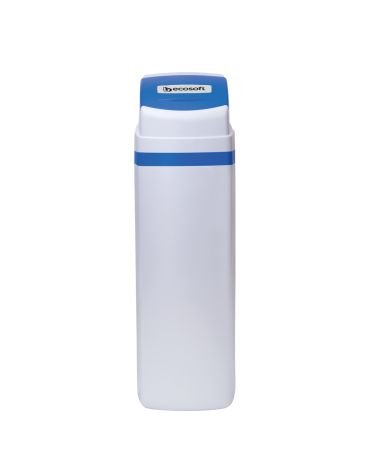

RF1035CABCI compact water softener assy w/o media (EN)

Set of equipment

CI 1" control valve ¹

^‍Pressure tank 10x35, 2,5" ²

Cabinet assembly ³

           ¹ CI 1" valve assembly (V1CIDM):

• CI 1" control valve
• Top stack distributor, 11 segments
• Connection kit 3/4''
• Power supply
• Injector, DLFC - for Ecomix and cation exchange resin

             ² Pressure tank assembly

• Pressure tank 8x35, 2,5"
• Riser
• Bottom stack distributor

             ³ Cabinet assembly

• Top and bottom cabinet parts (blue)
• Brine well assembly (brine valve, overflow set)

CI CONTROL VALVE KEY FEATURES

• ‍Regeneration control by water volume: delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their range of time
• Program in ppm, French degrees, German degrees, or cubic meters
• Stores system configuration and operation data in nonvolatile memory
• Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems to the system controller

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar) - 6,12 m³/h

          - Backwash (pressure drop 1,7 bar) - 6,12 m³/h

• Inlet, outlet - G 1″
• Drine - G 1″
• Brine line - G 3/8″
• Operating pressure - 2-6 bar
• Operating temperature +4...+30 ^oC
• Electrical requirements - 230 V, 50 Hz
• Electrical power - 30 W
• Volume of pressure tank - 29 L
• The volume of the rounded side - 2,5 L
• Dry system weight - 15 kg

* Only for Clack WS1 CI control valves includes meter, bypass, and 3/4" fitting kit

RECOMMENDED MEDIA VOLUME

• Ecomix Type C filter media - 25 L
• Ecomix Type A filter media - 25 L
• Ecomix Type P filter media - 25 L
• HCRS-S Strong acid cation exchange resin - 25 L
• PC002 Strong acid cation exchange resin - 25 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

• V3006 WS1 Bypass Assembly
• V3009 WS1 Auxiliary Microswitch Assembly
• V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
• V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
• V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can installed as additional equipment.
