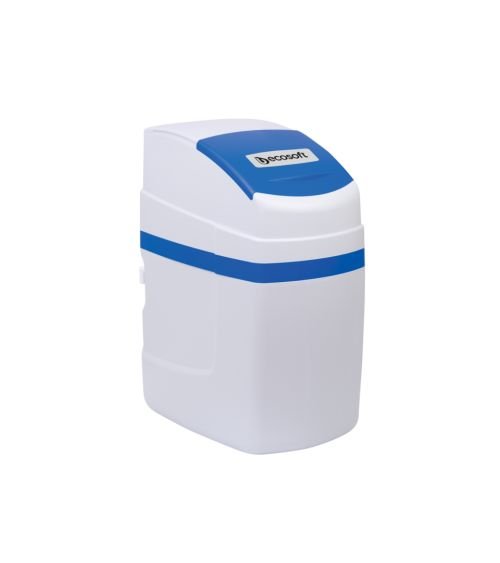

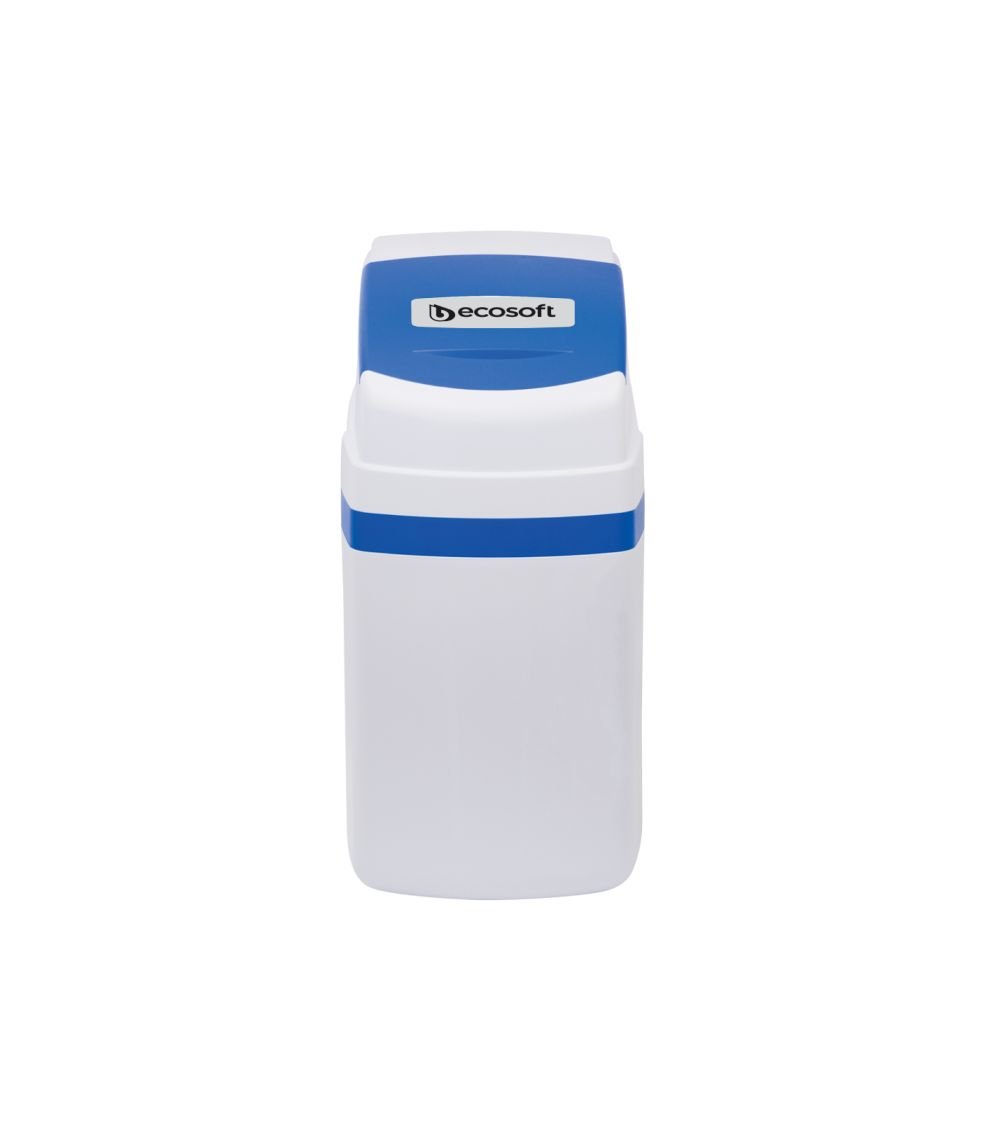

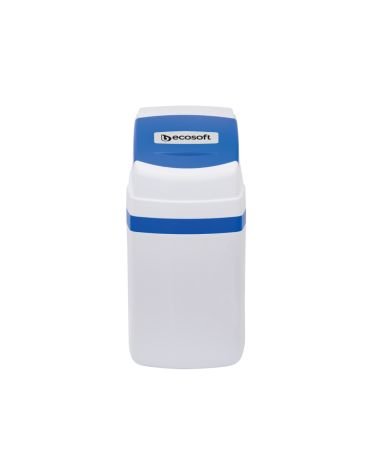

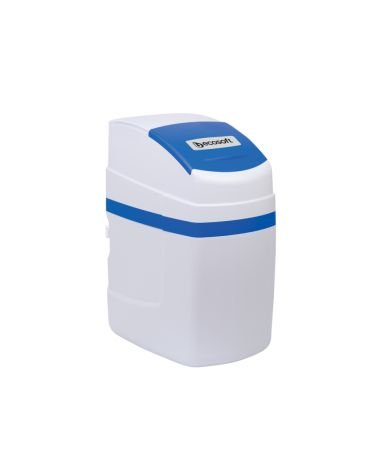

RF1018CABCI compact water softener assy w/o media (EN)

Esame atviri kainų pasiūlymams

Jūsų pasiūlymas išsiųstas.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Privalomi laukai

Kraunama

1 124,00 €
Kiekis
PREKĖS ŽENKLAS:
ECOSOFT (BWT)
RF1018CABCI compact water softener assy w/o media (EN), KAINA BE PVM: 928.92562, KODAS: RF1018CABCI | 001
RF1018CABCI

KEY FEATURES

  • Ready sets for different filtration medias
  • Basic set ready to work with Ecomix and cation exchange resin*
  • Overflow protection of the brine tank
  • The set is designed for convenient and quick installation
  • Compact dimensions

* For operation with another filter media just need to change the DLFC and injector

SIZE AND WEIGHT

Cabinet 1018 w/o media 1" CI

Dimensions, H×W×D: 700 х 350 х 520 mm

Filter weight 7 kg

SPECIFICATION

Set of equipment

CI 1" control valve 1

‍Pressure tank 10x18, 2,5" 2

Cabinet assembly 3

           1 CI 1" valve assembly (V1CIDM):

  • CI 1" control valve
  • Top stack distributor, 11 segments
  • Connection kit 3/4''
  • Power supply
  • Injector, DLFC - for Ecomix and cation exchange resin

             2 Pressure tank assembly

  • Pressure tank 10x18, 2,5"
  • Riser
  • Bottom stack distributor

             3 Cabinet assembly

  • Top and bottom cabinet parts (blue)
  • Brine well assembly (brine valve, overflow set)

CI CONTROL VALVE KEY FEATURES

  • ‍Regeneration control by water volume: delayed regen, immediate, both
  • Possibility to change the cycle of regeneration stages and their range of time
  • Program in ppm, French degrees, German degrees, or cubic meters
  • Stores system configuration and operation data in nonvolatile memory
  • Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems to the system controller

SPECIFICATIONS

  • Water flow rate*

          - Service (pressure drop 1 bar) - 6,12 m3/h

          - Backwash (pressure drop 1,7 bar) - 6,12 m3/h

  • Inlet, outlet - G 1″
  • Drine - G 1″
  • Brine line - G 3/8″
  • Operating pressure - 2-6 bar
  • Operating temperature +4...+30 oC
  • Electrical requirements - 230 V, 50 Hz
  • Electrical power - 30 W
  • Volume of pressure tank - 18,3 L
  • The volume of the rounded side - 2,5 L
  • Dry system weight - 7 kg

* Only for Clack WS1 CI control valves includes meter, bypass, and 3/4" fitting kit

RECOMMENDED MEDIA VOLUME

  • Ecomix Type C filter media - 12 L
  • Ecomix Type A filter media - 12 L
  • Ecomix Type P filter media - 12 L
  • HCRS-S Strong acid cation exchange resin - 12 L
  • PC002 Strong acid cation exchange resin - 12 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

  • V3006 WS1 Bypass Assembly
  • V3009 WS1 Auxiliary Microswitch Assembly
  • V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
  • V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
  • V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can installed as additional equipment.

DOWNLOAD




RF1018CABCI
