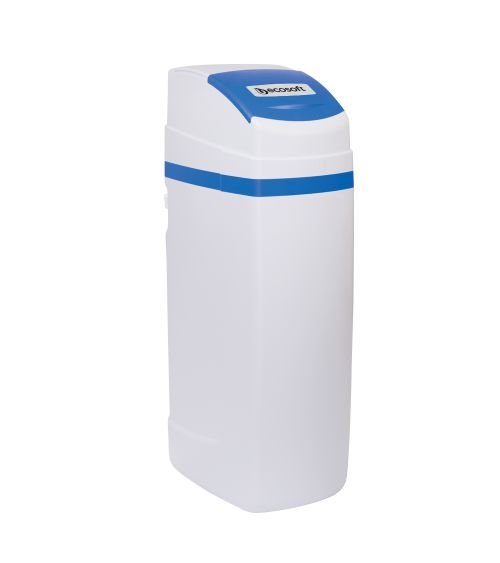

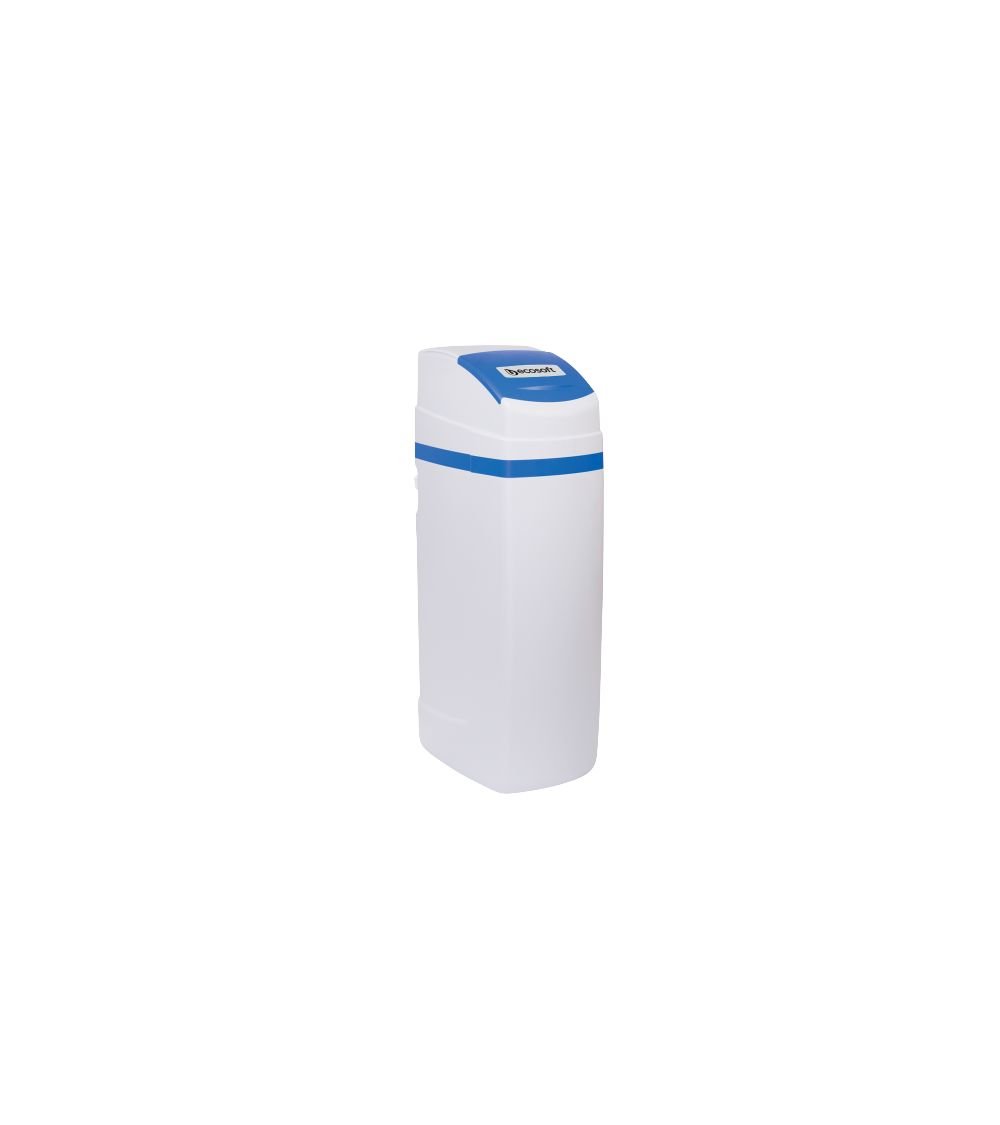

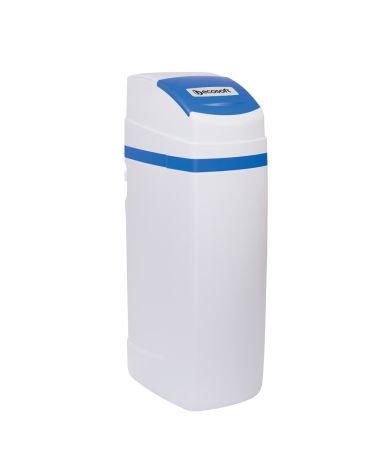

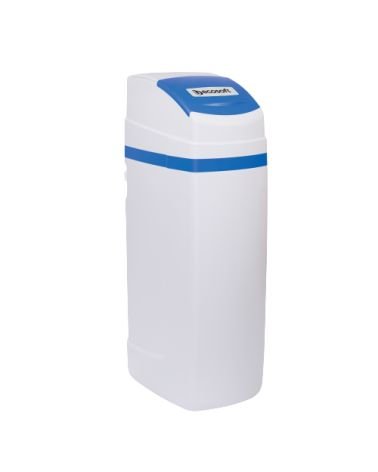

RF0835CABCI compact water softener assy w/o media (EN)
KEY FEATURES
- Ready sets for different filtration medias
- Basic set ready to work with Ecomix and cation exchange resin*
- Overflow protection of the brine tank
- The set is designed for convenient and quick installation
- Compact dimensions
* For operation with another filter media just need to change the DLFC and injector
SIZE AND WEIGHT
![Cabinet 0835 w/o media 1" CI](https://assets-global.website-files.com/607645f176105d6803fb88d5/6437d3a1986112ec57255b83_Size_0835_rf_fk_fu_product.png)
Dimensions, H×W×D: 1133 х 351 х 524 mm
Filter weight 10 kg
SPECIFICATION
Set of equipment
CI 1" control valve 1
Pressure tank 8x35, 2,5" 2
Cabinet assembly 3
1 CI 1" valve assembly (V1CIDM):
- CI 1" control valve
- Top stack distributor, 11 segments
- Connection kit 3/4''
- Power supply
- Injector, DLFC - for Ecomix and cation exchange resin
2 Pressure tank assembly
- Pressure tank 8x35, 2,5"
- Riser
- Bottom stack distributor
3 Cabinet assembly
- Top and bottom cabinet parts (blue)
- Brine well assembly (brine valve, overflow set)
CI CONTROL VALVE KEY FEATURES
- Regeneration control by water volume: delayed regen, immediate, both
- Possibility to change the cycle of regeneration stages and their range of time
- Program in ppm, French degrees, German degrees, or cubic meters
- Stores system configuration and operation data in nonvolatile memory
- Different setting modes are available:
- Twin or duplex configurations
- Up to 6 systems to the system controller
SPECIFICATIONS
- Water flow rate*
- Service (pressure drop 1 bar) - 6,12 m3/h
- Backwash (pressure drop 1,7 bar) - 6,12 m3/h
- Inlet, outlet - G 1″
- Drine - G 1″
- Brine line - G 3/8″
- Operating pressure - 2-6 bar
- Operating temperature +4...+30 oC
- Electrical requirements - 230 V, 50 Hz
- Electrical power - 30 W
- Volume of pressure tank - 25 L
- The volume of the rounded side - 1,5 L
- Dry system weight - 10 kg
* Only for Clack WS1 CI control valves includes meter, bypass, and 3/4" fitting kit
RECOMMENDED MEDIA VOLUME
- Ecomix Type C filter media - 18 L
- Ecomix Type A filter media - 18 L
- Ecomix Type P filter media - 18 L
- HCRS-S Strong acid cation exchange resin - 18 L
- PC002 Strong acid cation exchange resin - 18 L
The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com
ACCESSORIES**
- V3006 WS1 Bypass Assembly
- V3009 WS1 Auxiliary Microswitch Assembly
- V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
- V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
- V3191-01 WS1 Bypass Vertical Adapter Assy
** Not included in the basic set. Can installed as additional equipment.
