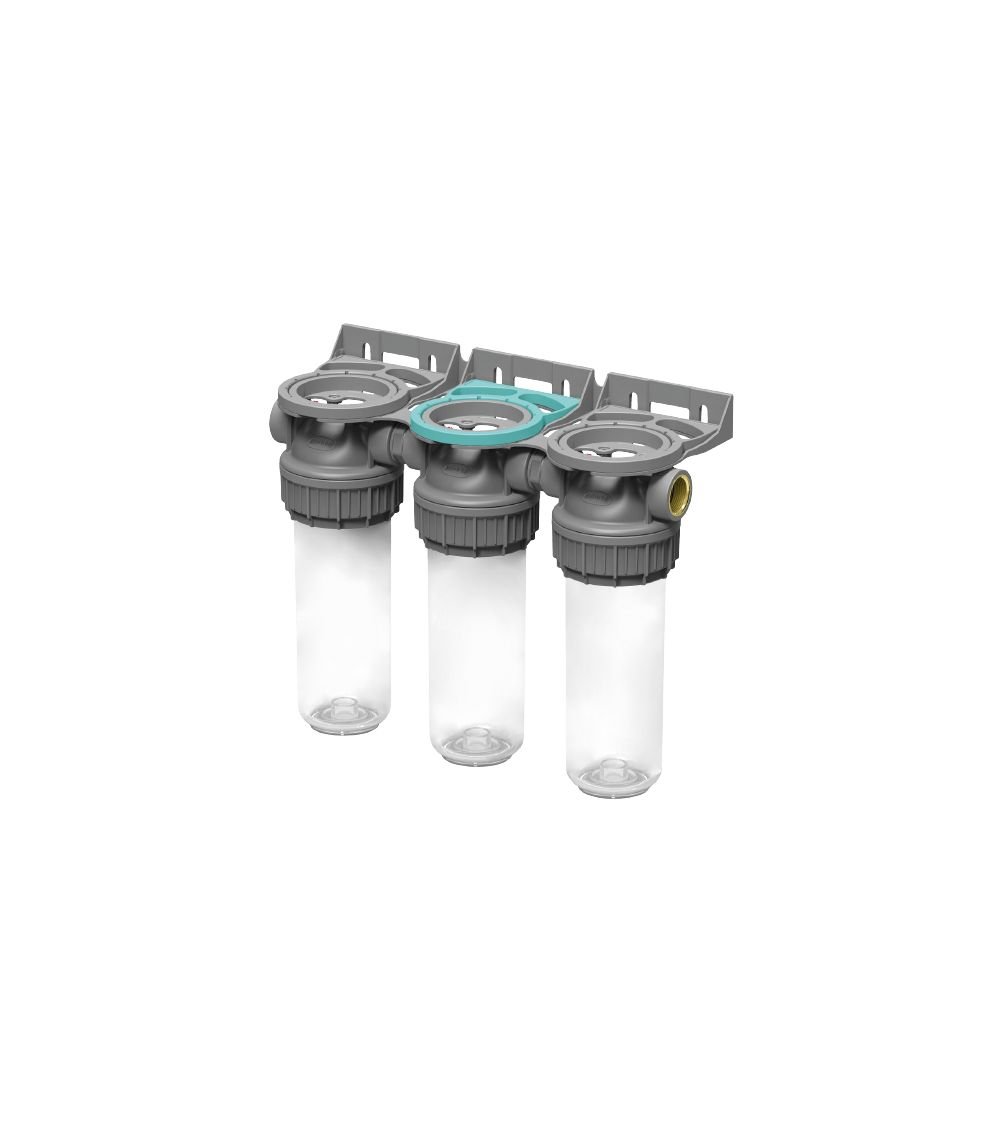

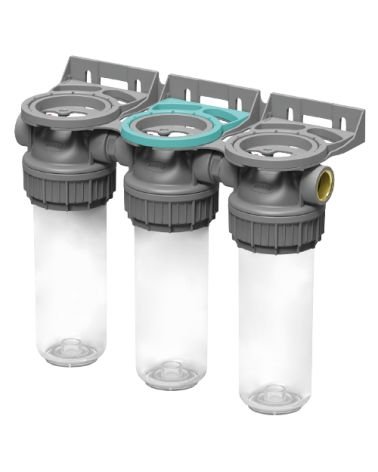

Plastic housing filter 3P ECO TRIPLEX 9" ¾ transparent PET bowl 1 – 1" (EN)
0,00 €
FTPP3P0150
Three-pieces line (head-nut-bowl) are designed for water purification for residential and commercial applications.
The bowl is made of PET material, which guarantees reliability and durability.
They are equipped with a plastic breather valve.
KEY FEATURES
- 2 mm belt on a bowl helps center the head for easy assemling and better pressure resistance
- Less pressure drop through star-like head design
- Compatible with three cartridge designs: DOE, BIG, COD3
- Smart placement of wrench in the bracket avoids its loss
SPECIFICATION
Technical specifications
- Materials: bowl - polyethylene (PET); head - polypropalene (PP) with brass connection units
- Clamping - threaded
- O-ring - EPDM
- Max. working pressure - 8 bar
- Max. working temperature - from 5°C (41°F) to 50°C (122°F)
- Bracketing - horizontal
- Connection - screw thread in inch
- Package - empty housing without filter cartridge
Packaging
- Quantity per package - 5 pcs
- Pieces on pallet - 90 pcs
