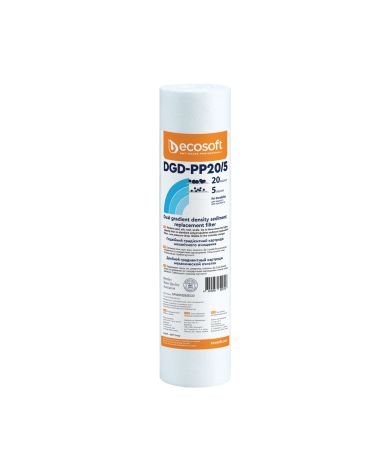

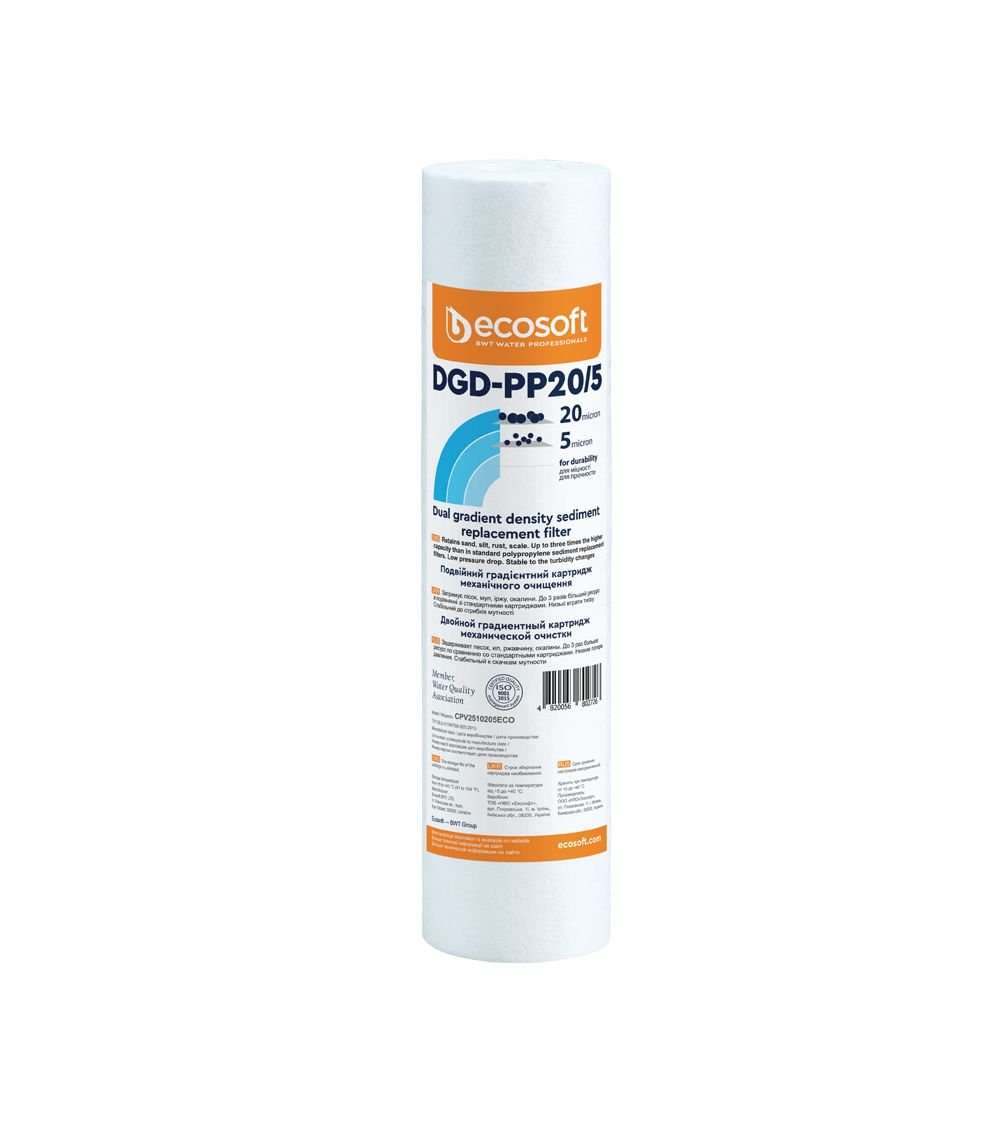

Ecosoft dual gradient PP sediment filter 2.5″×10″ 20-5 micron
1,01 €
PARAMETERS
Size 2,5" × 10"
Filtering rate (external layer / internal layer) 20 / 5 µm
Temperature of water +3...+43°C
Height 250 ± 2,0 mm
External diameter 60 ± 1,0 mm
Recommended flow rate 8 L/min
PARAMETERS
Size 2,5" × 10"
Filtering rate (external layer / internal layer) 20 / 5 µm
Temperature of water +3...+43°C
Height 250 ± 2,0 mm
External diameter 60 ± 1,0 mm
Recommended flow rate 8 L/min
CPV2510205ECO
KEY FEATURES
- 3 times higher capacity comparing to standard PP replacement filters
- 3 times higher rejection rates
- Low losses of pressure
- Stable operation even in case of water turbidity changes
- Superior quality, saving costs and space
SPECIFICATION
Dual gradient design allows creating two distinct filter zones. Larger particles(more than 20 micron) are trapped and filtered out in the first zone and thesmaller particles (5 to 20 micron) are trapped in the second zone. It allowsthe cartridge to operate at higher velocities and lower pressure drop.
CPV2510205ECO
