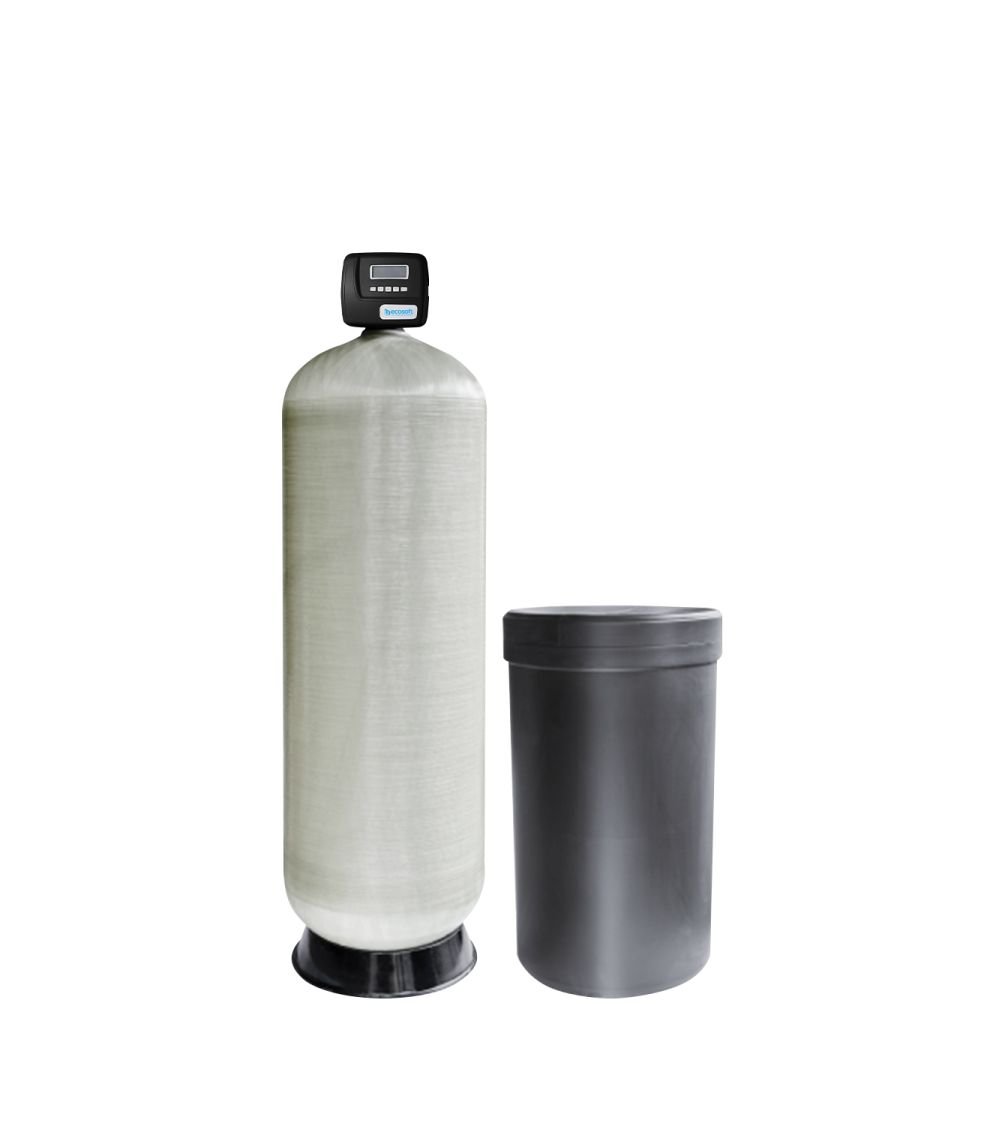

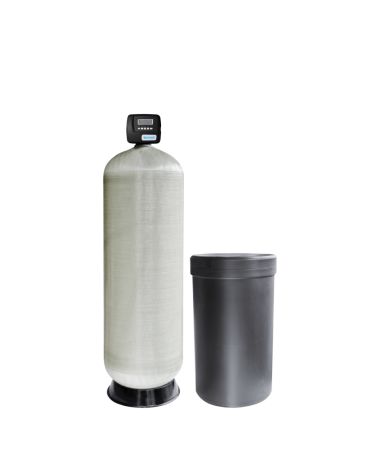

Softener assy w/o resin 21x62, 1.25" CE valve (EN)
KEY FEATURES
- Ready sets for different filtration medias
- Basic set ready to work with Ecomix and cation exchange resin*
- Overflow protection of the brine tank
- The set is designed for convenient and quick installation
* For operation with another filter media just need to change the DLFC and injector
SIZE AND WEIGHT
Dimensions, H×W×D: 1830 x 1310 x 620 mm
Filter weight 45 kg
SPECIFICATION
Set of equipment
CE 1,25" control valve 1
Pressure tank 21x62, 4" 2
Brine tank 3
1 CE 1,25" valve assembly (V125CEDME):
- CE 1,25" control valve
- Top stack distributor, 14 segments
- Connection kit 1,25''
- Power supply
- Injector, DLFC - for Ecomix and cation exchange resin
- Funnel
- Valve instruction manual, instruction manual
2 Pressure tank assembly
- Pressure tank 21x62, 4"
- Adaptor 4'' - 2,5''
- Riser DN 32 mm
- Bottom stack distributor, 15 segments
3 Brine tank assenbly
- Brine tank 24x50, 378 L
- Brine well assembly (brine valve, overflow set)
- Brine grid
CE CONTROL VALVE KEY FEATURES
- Regeneration control by water volume: delayed regen, immediate, both
- Possibility to change the cycle of regeneration stages and their range of time
- Multilanguage menu: English, German, French, Ukrainian
- Different setting modes are available:
- Twin or duplex configurations
- Up to 6 systems to the system controller
- 2 external devices simultaneously can be connected
SPECIFICATIONS
- Water flow rate*
- Service (pressure drop 1 bar) - 7,7 m3/h
- Backwash (pressure drop 1,7 bar) - 7,3 m3/h
- Inlet, outlet - G 1,25″
- Drine - G 1″
- Brine line - G 3/8″
- Operating pressure - 2-6 bar
- Operating temperature +4...+30 oC
- Electrical requirements - 230 V, 50 Hz
- Electrical power - 30 W
- Volume of pressure tank - 311 L
- Volume of brine tank - 378 L
- The volume of the rounded side - 25 L
- Dry system weight - 45 kg
* Only for Clack WS1.25 CE control valves includes meter, bypass, and 1.25" fitting kit
RECOMMENDED MEDIA VOLUME
- Ecomix Type C filter media - 150 L ***
- Ecomix Type A filter media - 150 L ***
- Ecomix Type P filter media - 150 L ***
- HCRS-S Strong acid cation exchange resin - 200...225 L
- PC002 Strong acid cation exchange resin - 200...225 L
The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.
*** The amount of Ecomix can be increased by no more than 25 liters.
ACCESSORIES**
- V3006 WS1 Bypass Assembly
- V3009 WS1 Auxiliary Microswitch Assembly
- V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
- V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
- V3191-01 WS1 Bypass Vertical Adapter Assy
** Not included in the basic set. Can installed as additional equipment.
