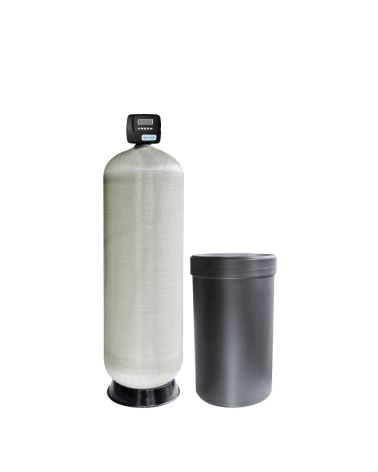

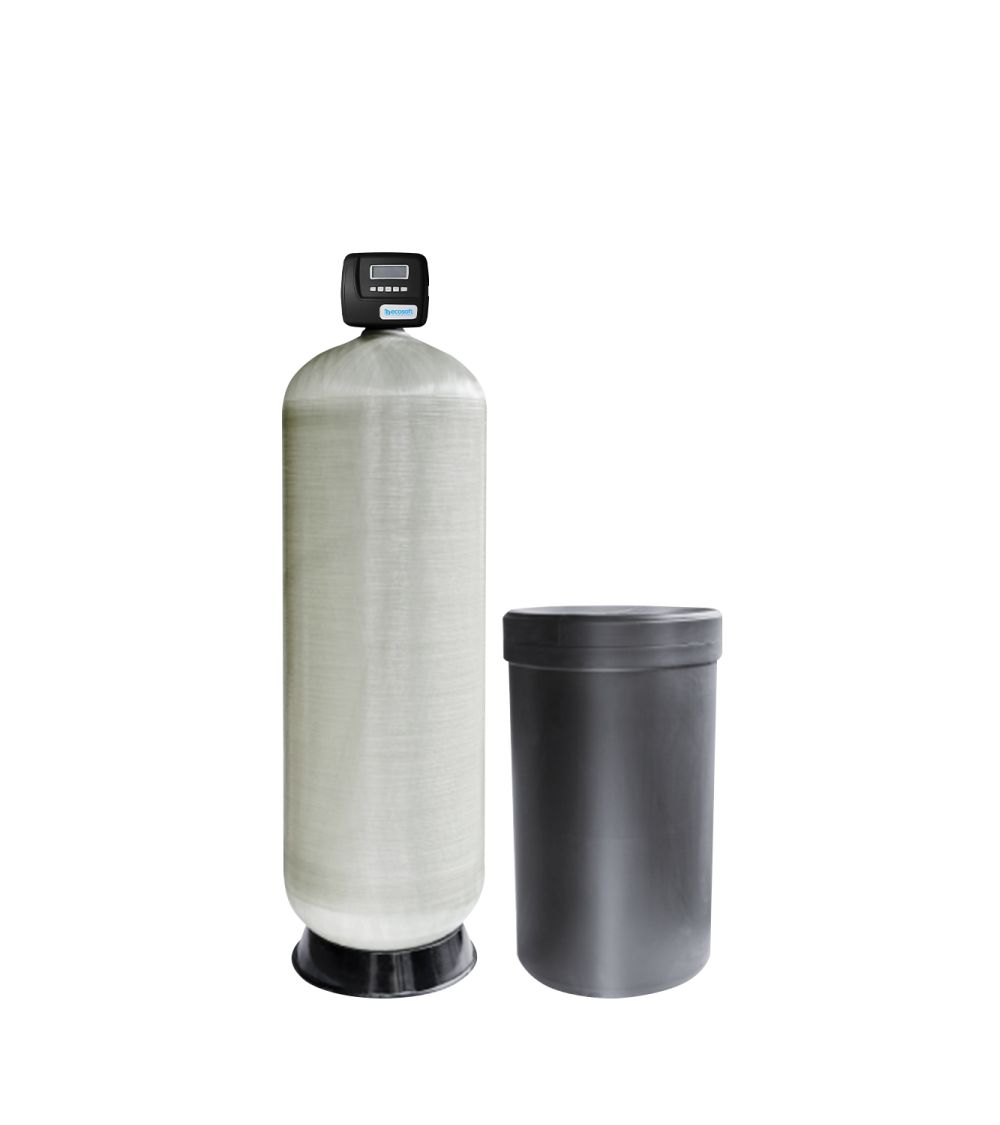

Softener assy w/o media 42x72, 2" CE valve (EN)

Esame atviri kainų pasiūlymams

Jūsų pasiūlymas išsiųstas.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Privalomi laukai

Kraunama

9 671,00 €
Kiekis
PREKĖS ŽENKLAS:
ECOSOFT (BWT)
Softener assy w/o media 42x72, 2" CE valve (EN), KAINA BE PVM: 7992.561983, KODAS: RF4272CE2 | 001
RF4272CE2

KEY FEATURES

  • Ready sets for different filtration medias
  • Basic set ready to work with Ecomix and cation exchange resin*
  • Overflow protection of the brine tank
  • The set is designed for convenient and quick installation

* For operation with another filter media just need to change the DLFC and injector

SIZE AND WEIGHT

Bi-block 4272 w/o resin 2" CE

Dimensions, H×W×D: 2590 x 2240 x 1088 mm

Filter weight 230 kg

SPECIFICATION

Set of equipment

CE 2,0" control valve 1

‍Pressure tank 42x72, 6" 2

Brine tank 3

           1 WS2CE 2,0" valve assembly (V2CEDTE):

  • WS2CE 2,0" control valve
  • 2,0" meter assembly
  • Top stack distributor, insert 50 mm
  • Power supply
  • Injector, DLFC - for Ecomix and cation exchange resin
  • Funnel
  • Valve instruction manual, instruction manual

             2 Pressure tank assembly

  • Pressure tank 42x72, 6"
  • Adaptor 4'' - 2''
  • Riser DN 50 mm
  • Connection kit
  • Bottom stack distributor TMHL 42, 50 mm solvent

             3 Brine tank assenbly

  • Brine tank 39x60, 1100 L
  • Brine well assembly (brine valve, overflow set)
  • Brine grid

CE CONTROL VALVE KEY FEATURES

  • ‍Regeneration control by water volume: delayed regen, immediate, both
  • Possibility to change the cycle of regeneration stages and their range of time
  • Multilanguage menu: English, German, French, Ukrainian
  • Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems to the system controller

          - 2 external devices simultaneously can be connected

SPECIFICATIONS

  • Water flow rate*

          - Service (pressure drop 1 bar) - 26,1 m3/h

          - Backwash (pressure drop 1,7 bar) - 18,2 m3/h

  • Inlet, outlet - G 2,0″
  • Drine - G 1,5″
  • Brine line - G 3/8″
  • Operating pressure - 2-6 bar
  • Operating temperature +4...+30 oC
  • Electrical requirements - 230 V, 50 Hz
  • Electrical power - 30 W
  • Volume of pressure tank - 1494 L
  • Volume of brine tank - 1100 L
  • The volume of the rounded side - 170 L
  • Dry system weight - 230 kg

* Only for Clack WS1.5 CE control valves includes meter.

‍RECOMMENDED MEDIA VOLUME

  • Ecomix Type C filter media - 850 L ***
  • Ecomix Type A filter media - 850 L ***
  • Ecomix Type P filter media - 850 L ***
  • HCRS-S Strong acid cation exchange resin - 850...950 L
  • PC002 Strong acid cation exchange resin - 850...950 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.

*** The amount of Ecomix can be increased by no more than 25 liters.

ACCESSORIES**

  • V3017 - WS2 Service or Fill Switch Assembly
  • V3076BSPT - Motor Alternating Valve 2 BSPT Revision 2
  • V3094BSP - WS2 Meter Assembly Male x Female BSPT

** Not included in the basic set. Can installed as additional equipment.
