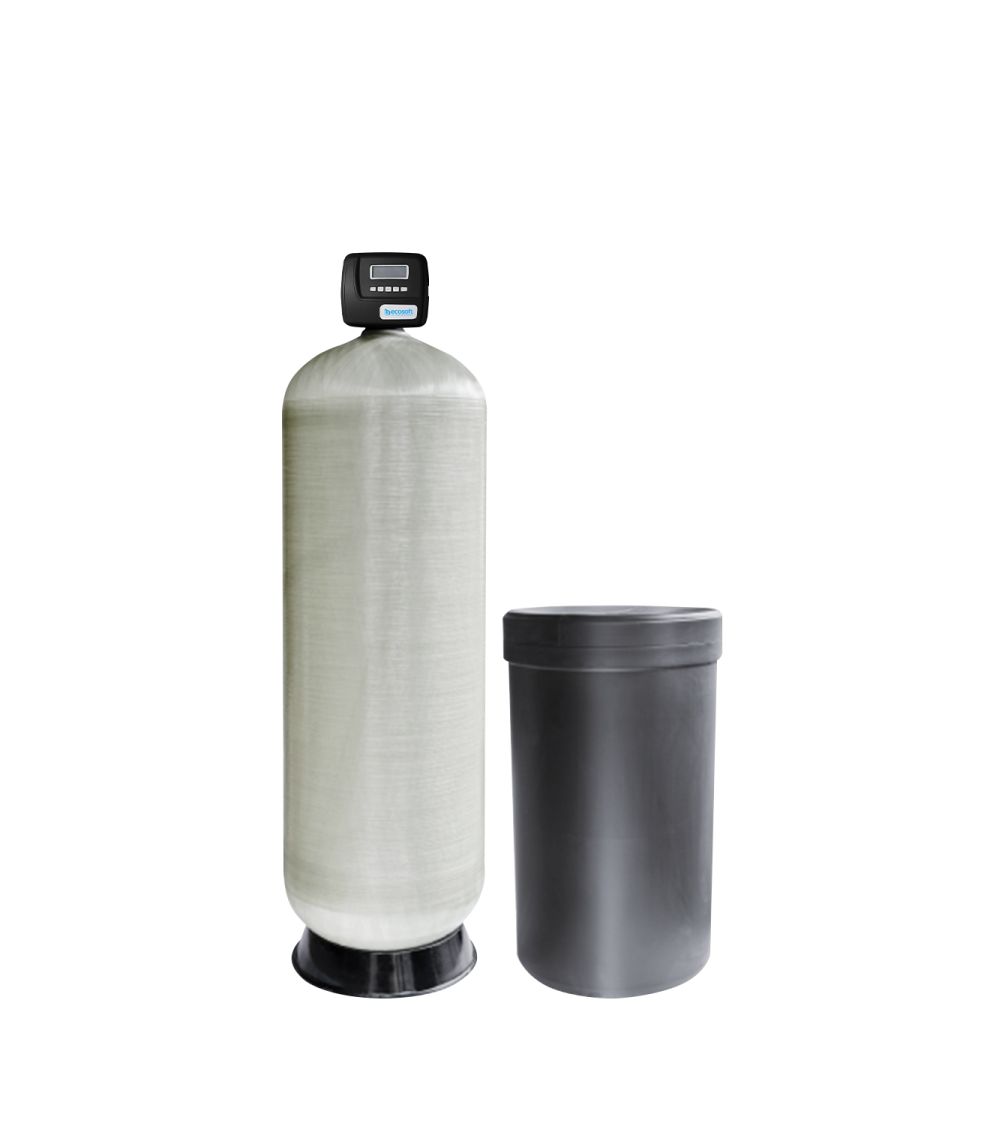

Softener assy w/o media 30x72, 1.5" CE valve (EN)
KEY FEATURES
- Ready sets for different filtration medias
- Basic set ready to work with Ecomix and cation exchange resin*
- Overflow protection of the brine tank
- The set is designed for convenient and quick installation
* For operation with another filter media just need to change the DLFC and injector
SIZE AND WEIGHT
Dimensions, H×W×D: 2280 x 1720 x 800 mm
Filter weight 110 kg
SPECIFICATION
Set of equipment
CE 1,5" control valve 1
Pressure tank 30x72, 4" 2
Brine tank 3
1 CE 1,5" valve assembly (V15CEDT):
- CE 1,5" control valve
- 1,5" meter assembly
- Top stack distributor, insert 50 mm
- Drain fitting 1''
- Power supply
- Injector, DLFC - for Ecomix and cation exchange resin
- Funnel
- Valve instruction manual, instruction manual
2 Pressure tank assembly
- Pressure tank 30x72, 4"
- Adaptor 4'' - 2''
- Riser DN 50 mm
- Bottom stack distributor TMHL 30, 50 mm solvent
3 Brine tank assenbly
- Brine tank 30x50, 570 L
- Brine well assembly (brine valve, overflow set)
- Brine grid
CE CONTROL VALVE KEY FEATURES
- Regeneration control by water volume: delayed regen, immediate, both
- Possibility to change the cycle of regeneration stages and their range of time
- Multilanguage menu: English, German, French, Ukrainian
- Different setting modes are available:
- Twin or duplex configurations
- Up to 6 systems to the system controller
- 2 external devices simultaneously can be connected
SPECIFICATIONS
- Water flow rate*
- Service (pressure drop 1 bar) - 15,9 m3/h
- Backwash (pressure drop 1,7 bar) - 11,8 m3/h
- Inlet, outlet - G 1,5″
- Drine - G 1″
- Brine line - G 3/8″
- Operating pressure - 2-6 bar
- Operating temperature +4...+30 oC
- Electrical requirements - 230 V, 50 Hz
- Electrical power - 30 W
- Volume of pressure tank - 697 L
- Volume of brine tank - 570 L
- The volume of the rounded side - 80 L
- Dry system weight - 110 kg
* Only for Clack WS1.5 CE control valves includes meter.
RECOMMENDED MEDIA VOLUME
- Ecomix Type C filter media - 425 L ***
- Ecomix Type A filter media - 425 L ***
- Ecomix Type P filter media - 425 L ***
- HCRS-S Strong acid cation exchange resin - 450...500 L
- PC002 Strong acid cation exchange resin - 450...500 L
The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.
*** The amount of Ecomix can be increased by no more than 25 liters
ACCESSORIES**
- V3017 - WS2 Service or Fill Switch Assembly
- V3097BSPT - WS1.5" No Hard Water Bypass Male x Female BSPT
- V3071BSPT - MAV 1.5 BSPT Revision 2
- V3040BSPT-15 - WS1.5 Meter Assembly Male xFemale NPT 15' Meter Cable
** Not included in the basic set. Can installed as additional equipment.
