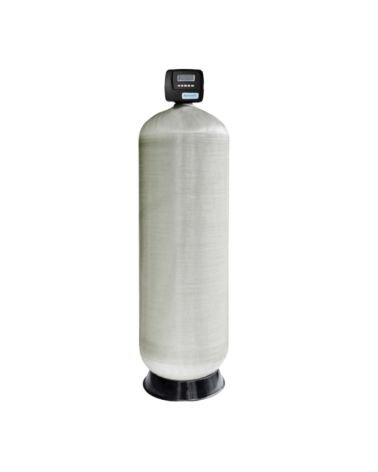

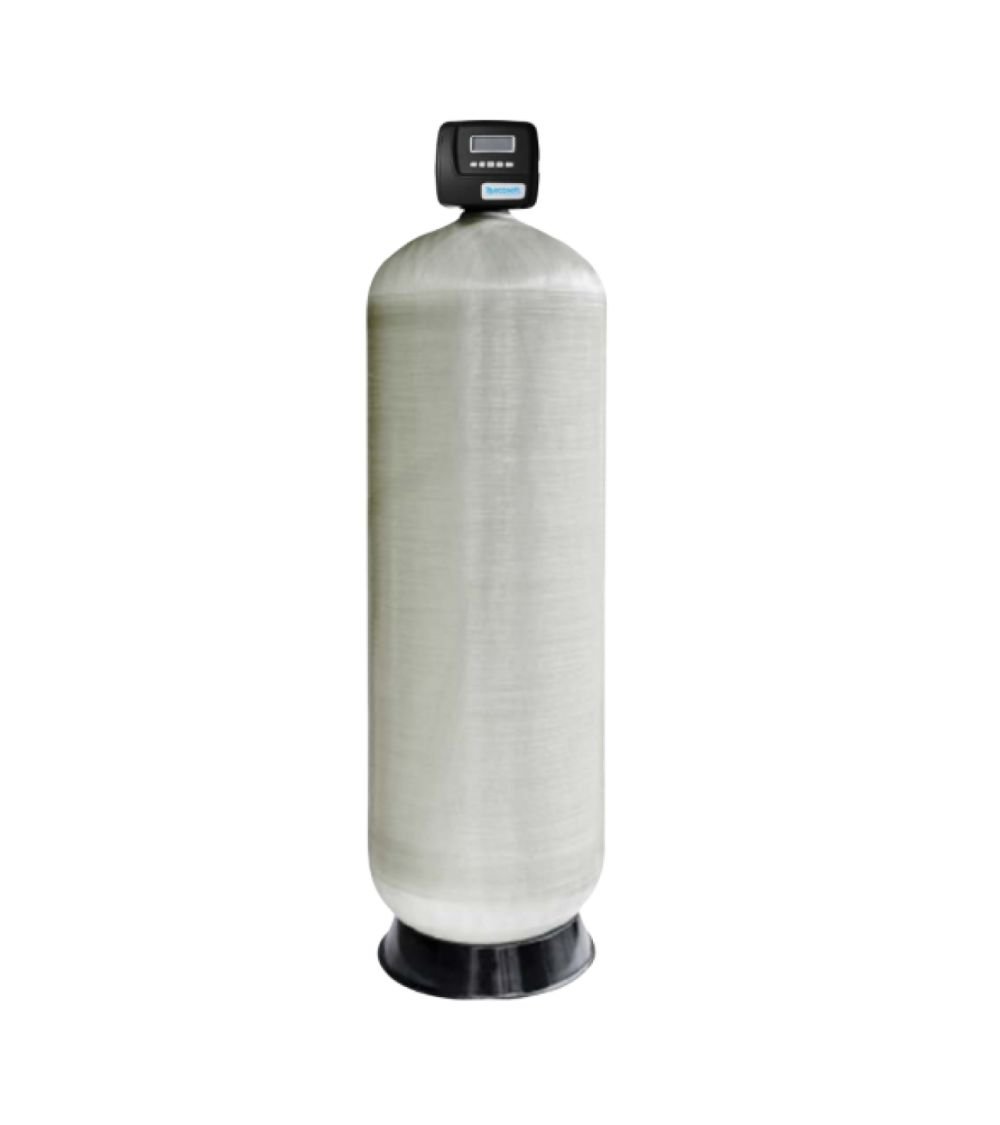

Backwash filter assy 48x72 w/o material, 2" CE valve (EN)

Esame atviri kainų pasiūlymams

Jūsų pasiūlymas išsiųstas.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Privalomi laukai

Kraunama

7 909,00 €
Kiekis

PARAMETERS

Media volume 405...990,5 L

Control valve Clack WS2CE

Pressure tank 48x72, 6"

Electrical power 30 W

Volume of pressure tank 1895 L

Operating pressure 2-6 bar

PREKĖS ŽENKLAS:
ECOSOFT (BWT)
Backwash filter assy 48x72 w/o material, 2" CE valve (EN), KAINA BE PVM: 6536.363636, KODAS: BF4872CE2 | 001
BF4872CE2

KEY FEATURES

  • Ready sets for different filtration medias
  • Basic set ready to work with carbon medias
  • The set is designed for convenient and quick installation

SIZE AND WEIGHT

Backwash 4872 w/o material 2" CE

Dimensions, H×W×D: 2540x 1220 mm

Filter weight 250 kg

SPECIFICATION

Set of equipment

WS2CE control valve 1

‍Pressure tank 48x72, 6" 2

           1 WS2CE valve assembly (V2CEDТE):

  • WS2CE control valve
  • Top stack distributor, insert 50 mm
  • Power supply
  • Valve instruction manual, Instruction manual

             2 Pressure tank assembly

  • Pressure tank 48x72, 6"
  • Flange 6'' - 4''
  • Adaptor 4" - 2"
  • Riser DN 50 mm
  • Connection kit
  • Bottom stack distributor TMHL 48, 50 mm solvent

CE CONTROL VALVE KEY FEATURES

  • Regeneration control by water volume : delayed regen, immediate, both
  • Possibility to change the cycle of regeneration stages and their range of time
  • Multilanguage menu : English, German, French, Ukrainian
  • Different setting modes are available:
  1. twin or duplex configurations
  2. up to 6 systems to the system controller
  3. 2 external devices simultaneously can be connected

SPECIFICATIONS

  • Water flow rate*

          - Service (pressure drop 1 bar) - 26,1 m3/h

          - Backwash (pressure drop 1,7 bar) - 18,2 m3/h

  • Inlet, outlet - G 2″
  • Drine - G 1,5″
  • Operating pressure - 2-6 bar
  • Operating temperature +4...+30 oC
  • Electrical requirements - 230 V, 50 Hz
  • Electrical power - 30 W
  • Volume of pressure tank - 1895 L
  • The volume of the rounded side - 245 L
  • Dry system weight - 250 kg

RECOMMENDED MEDIA VOLUME

  • Granular activated carbon Centaur 12x40 - 405 kg***
  • Activated Carbon Filtrasorb 300 - 500 kg***
  • Filter-AG PLUS media, 28.3 L bag - 990,5 L***
  • Filter-AG material, 28.3 L bag - 990,5 L***
  • Birm filter media, 28.3 L bag - 990,5 L***

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

***Recommended to use support layer, 400 Kg

ACCESSORIES**

  • V3017 WS2 Service or Fill Switch Assembly
  • V3076BSPT Motor Alternating Valve 2 BSPT Revision 2
  • V3094BSPT WS2 Meter Assembly Male x Female BSPT

** Not included in the basic set. Can installed as additional equipment.

DOWNLOAD



BF4872CE2
