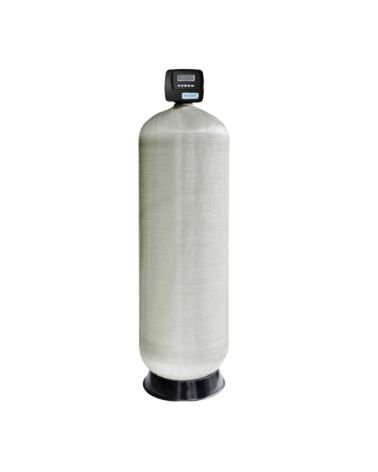

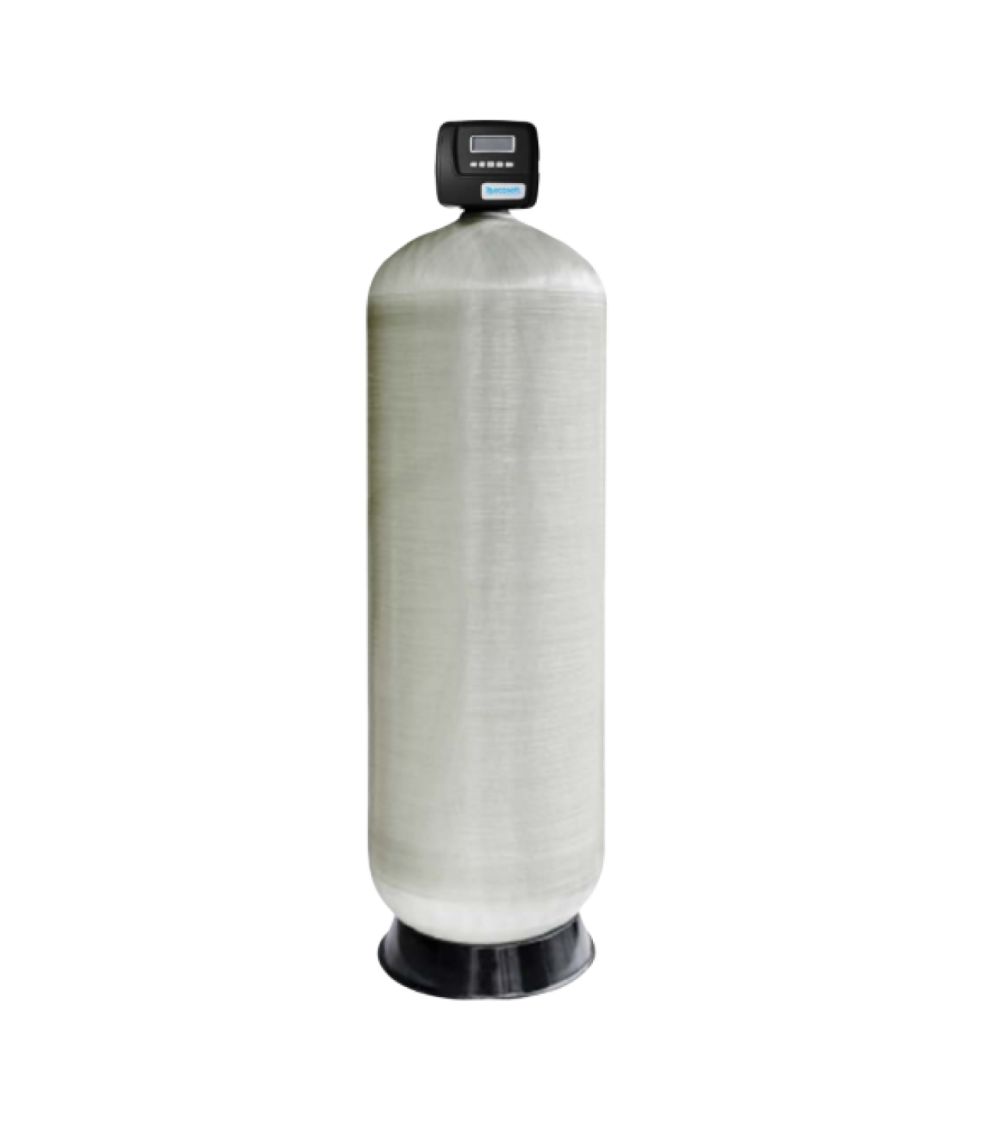

Backwash filter assy 21x62 w/o material, 1.25" CE valve (EN)

SIZE AND WEIGHT

SPECIFICATION

Set of equipment

CE 1,25" control valve ¹

^‍Pressure tank 21x62, 4" ²

           ¹ CE 1,25" valve assembly (V125CEDME):

• CE 1,25" control valve
• 1,25" meter assembly
• DLFC
• Top stack distributor, 14 segments
• Drain fitting 1''
• Connection kit 1''
• Power supply
• Funnel
• Valve instruction manual, instruction manual

             ² Pressure tank assembly

• Pressure tank 21x62, 4"
• Adaptor 4" - 2,5"
• Riser DN 32 mm
• Bottom stack distributor, 15 segments

CE CONTROL VALVE KEY FEATURES

• Regeneration control by water volume : delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their range of time
• Multilanguage menu : English, German, French, Ukrainian
• Different setting modes are available:

1. twin or duplex configurations
2. up to 6 systems to the system controller
3. 2 external devices simultaneously can be connected

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar) - 7,7 m³/h

          - Backwash (pressure drop 1,7 bar) - 7,3 m³/h

• Inlet, outlet - G 1,25″
• Drine - G 1″
• Operating pressure - 2-6 bar
• Operating temperature +4...+30 ^oC
• Electrical requirements - 230 V, 50 Hz
• Electrical power - 30 W
• Volume of pressure tank - 311 L
• The volume of the rounded side - 25 L
• Dry system weight - 40 kg

RECOMMENDED MEDIA VOLUME

• Granular activated carbon Centaur 12x40 - 75 kg
• Activated Carbon Filtrasorb 300 - 75 kg
• Filter-AG PLUS media - 141,5 L
• Filter-AG material - 141,5 L
• Birm filter media - 141,5 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

• V3009 WS1 Auxiliary Microswitch Assembly
• V3070FM Bypass shut-off valve during regeneration for 1" and 1.25" systems
• V3069MM-01 Water Specialist  1" & 1.25" MAV

** Not included in the basic set. Can installed as additional equipment.
