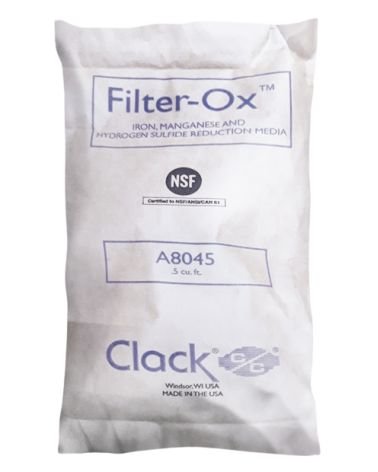

A8045
Filter-Ox™ is capable of reducing iron, manganese and hydrogen sulfide from water through oxidation and filtration.
KEY FEATURES
- Iron reduction over wide pH range
- Effective reduction of hydrogen sulfide in addition to iron and/or manganese
- No harmful effects from a chlorine feed
- Low attrition for long bed life
SPECIFICATION
Technical characteristics
- Color - lighty grey
- Bulk density - 1.44 g/cm3
- Specific gravity - 2.7 g/cm3
- Uniformity coefficient - 1.5
- Bead size 0.42-1.17 mm
Operating conditions
- Water pH range - 6.2-8.5
- Maximum water temperature: +38°C
- Bed depth - 76 cm
- Freeboard - 40% of bed depth (min.)
- Free chlorine concentration - less than 3.0 ppm
How it works
Filter-Ox™ is a highly effective filter media capable of reducing iron, manganese and hydrogen sulfide from water through oxidation and filtration.
Soluble iron and manganese are oxidized and precipitated by contact with the catalytic coating on the Filter-Ox™ granules. The hydrogen sulfide is oxidized to an insoluble sulfur precipitate. Precipitates are then filtered and removed by backwashing.
A8045
