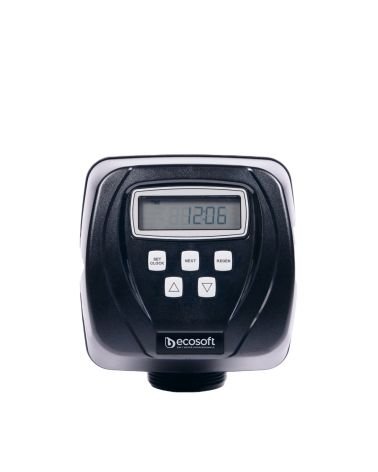

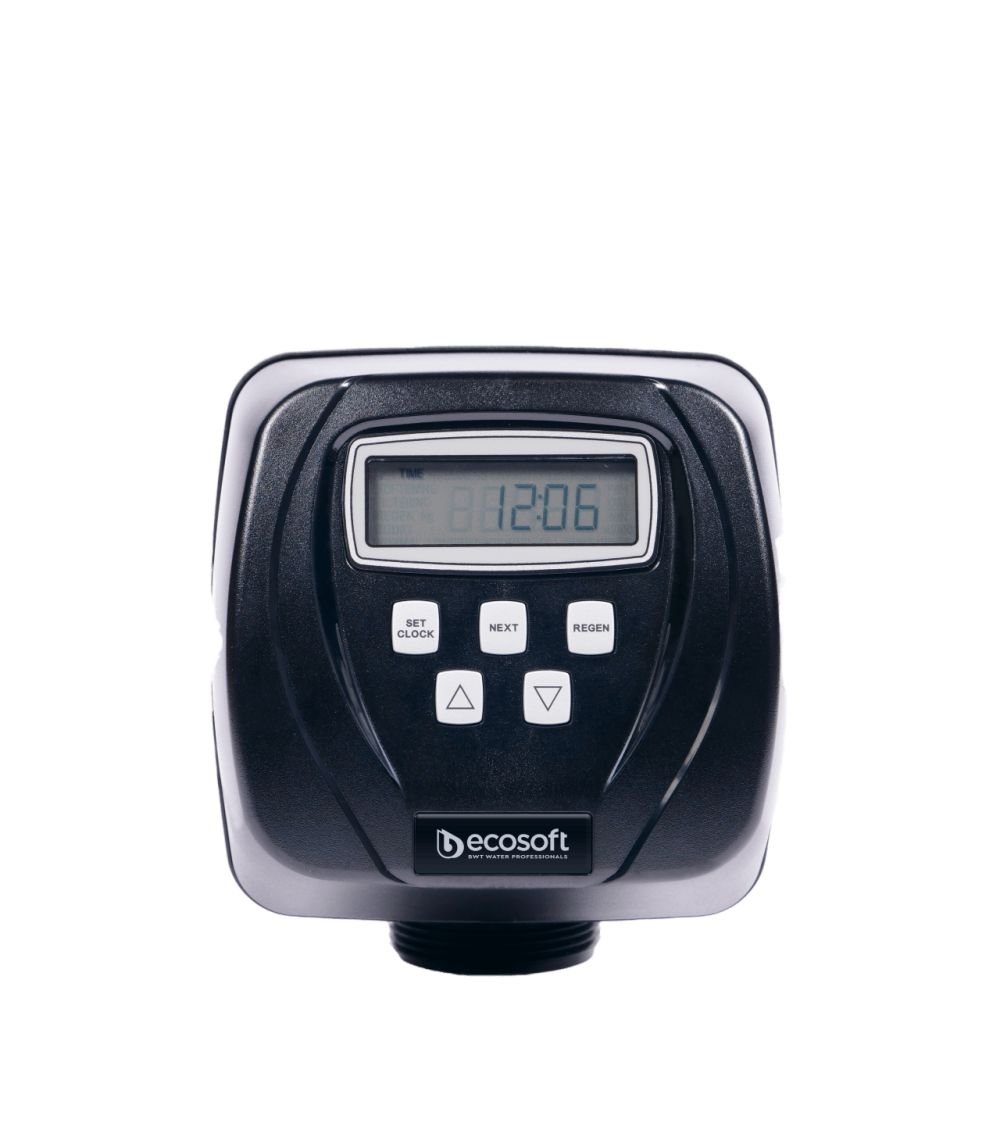

Water Specialist 1.25” CI Downflow Regeneration Metered Control Valves (EN)
420,00 €
V125CIDME-08
KEY FEATURES
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability to 21" diameter tanks
- Downflow/upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with a 24 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Pre or Post treated water regenerant refill
- Mixing valve option available
- Low salt alarm
- 24-hour clock
- Reliable and proven DC drive
SPECIFICATION
Specifications
FLOW RATES
Service @ 15 psi/1 bar drop (includes meter, bypass, and 1.25" fitting kit) - 129 lpm (7.7 m3/h) (34 gpm)
Backwash @ 25 psi/1.7 bar drop - 121 lpm (7.3 m3/h) (32 gpm) (1)
OPERATING PRESSURES
Minimum/Maximum: 20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum: 40º - 110º F (4º – 43º C)
METER
Accuracy: ± 5%
Flow Rate Range: 0.95 - 129 lpm
Volume Range: 0.02 - 5,700 m3
Totalizer: 1 m3 - 99,999 m3
DIMENSIONS & WEIGHT
Distributor Pilot - 1.32" OD Pipe (1" NPS) or 32 mm OD
Drain Line - ¾" or 1" NPT
Brine Line - 3/8" or ½" OD Poly Tube
Mounting Base - 2 ½"- 8 NPSM
Height From Top Of Tank - 7 3/8" (187 mm)
Weight - 4.5 lbs (2 kg)
| ELECTRICAL SPECIFICATIONS |
POWER SUPPLY
|
|
| U.S. | International | |
| Supply Voltage | 100VAC to 120VAC |
200VAC to 240VAC
|
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
TANK APPLICATIONS
Water Softener: 6" - 21" Diameter
Water Filter (2): 6" - 24" Diameter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Backwash: 1 - 120 minutes
Rinse: 1 - 120 minutes
Pause (service): 1 - 480 minutes
Brine (co-current): 1 - 180 minutes
Brine (counter-current): 1 - 180 minutes
Refill (softener): 0.05 - 90.00 Kg
Refill (filter): 0.2 - 76.00 Liters
Options: Backwash Filter, Bypass, Weather Cover
Compatible with the following typical concentrations of regenerants or chemicals: Sodium chloride, potassiumchloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
(1) Acquired by use of external drain line flow control.
(2) Filter tank size calculated @ 10 gpm of backwash per square foot of bed area / 407 lpm per square meter of bed area.
V125CIDME-08
