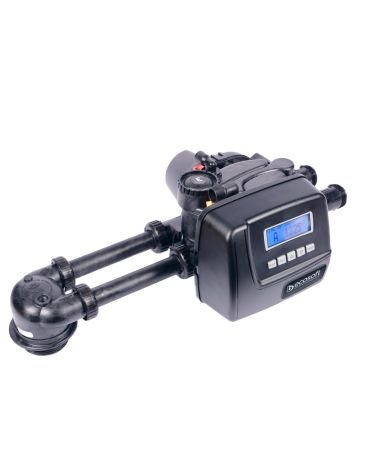

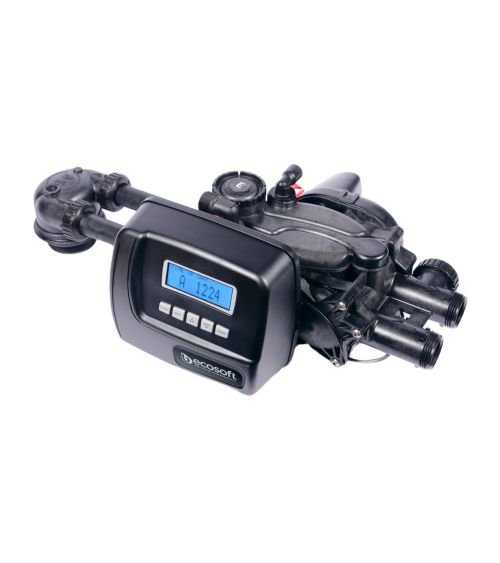

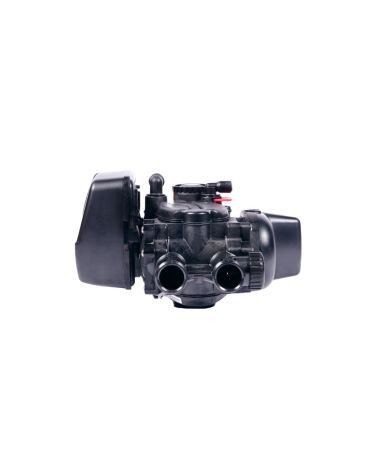

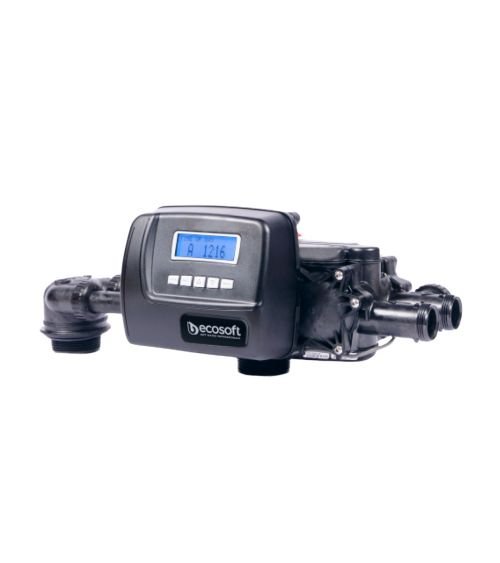

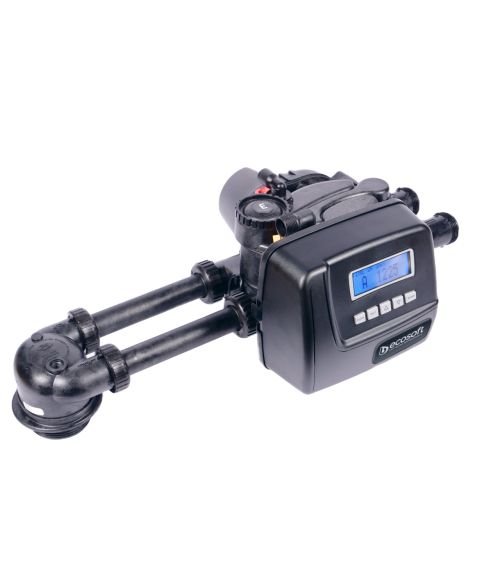

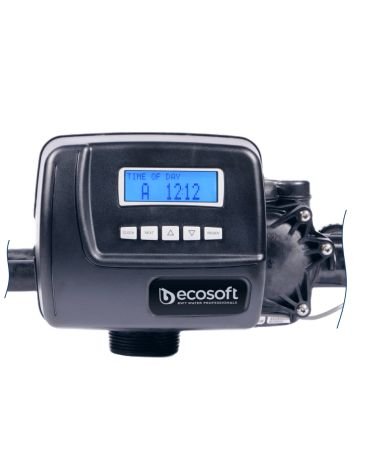

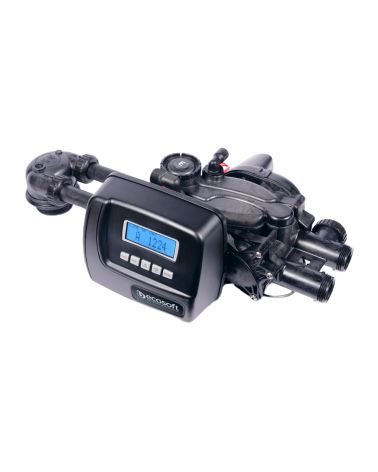

Water Specialist 1” CE Twin Alternating Control Valve (EN)

608,00 €
Kiekis
Prekė užsakoma, susisiekite su mumis nurodytais kontaktais
PREKĖS ŽENKLAS:
Water Specialist 1” CE Twin Alternating Control Valve (EN), KAINA BE PVM: 502.479339, KODAS: V1CEDME-03 | 001
V1CEDME-03

KEY FEATURES

  • Multilanguage menu: English, German, French, Ukrainian
  • User friendly and Auto settings. Pre-set programms for Ecomix units and softeners
  • Mixing valve option available
  • Downflow regeneration
  • Backlit screen (high useful for dark environment)
  • Text menu settings
  • Manual and flexible setting of regenetation
  • Programmable regeneration cycle times
  • Water consumption memory in 124 days
  • 24-hour clock

SPECIFICATION

Specifications

FLOW RATES

Service @ 15 psi/1 bar drop (includes bypass and meter) - 102 lpm (6.12 m3/h) (27 gpm)

Backwash @ 25 psi/1.7 bar drop (includes bypass) - 102 lpm (6.12 m3/h) (27 gpm)

OPERATING PRESSURES

Minimum/Maximum: 20 - 125 psi (1.4 - 8.6 bar)

OPERATING TEMPERATURES

Minimum/Maximum: 40º - 110º F (4º – 43º C)

METER

Accuracy: ± 5%

Flow Rate Range: 0.95 - 102 lpm

Volume Range: 0.02 - 5,700 m3

Totalizer: 1 m3 - 99,999 m3

DIMENSIONS & WEIGHT

Distributor Pilot - 1.050" OD Pipe (¾" NPS)

Drain Line - ¾" or 1" NPT

Brine Line - 3/8" or ½" OD Poly Tube

Mounting Base - 2 ½"- 8 NPSM

Height From Top Of Tank - 7 3/8" (187 mm)

Weight - 16 lbs (7,25 kg)

ELECTRICAL SPECIFICATIONS
POWER SUPPLY

  U.S. International
Supply Voltage 100VAC to 120VAC
200VAC to 240VAC
Supply Frequency 50/60 Hz 50/60 Hz
Output Voltage 15VDC 15VDC
Output Current 500 mA 500 mA

TANK APPLICATIONS

Water Softener: 6" - 21" Diameter

Water Filter (1): 6" - 21" Diameter

(1) Filter tank size calculated @ 10 gpm of backwash per square foot of bed area / 407 lpm per square meter of bed area.

CYCLES OF OPERATION

Choose up to nine regeneration cycles, in any order, with a wide range of available values:

Backwash: 1 - 120 minutes

Rinse: 1 - 120 minutes

Pause (service): 1 - 480 minutes

Brine (co-current): 1 - 180 minutes

Refill (softener): 0.05 - 90.00 Kg

Refill (filter): 0.2 - 76.00 Liters

Options: Backwash Filter, Bypass, Weather Cover

Compatible with the following typical concentrations of regenerants or chemicals: Sodium chloride, potassiumchloride, potassium permanganate, sodium bisulfite, chlorine and chloramines

V1CEDME-03
