CLACKKIT
KEY FEATURES
- Designed for Ecomix softeners and softeners, installed with Clack CE, CI and DV control valves
- Compact design
- It is seamlessly integrated into the valve, replacing the microswitch's position.
- No need to buy additional materials for connection
- Used for Titanium Gold, Arctic Blue and RF1018 - RF2162 (12 - 200 liters media)
SPECIFICATION
Operation
Connect the probe on the softner salt line (use the necessary adapters). Check how many liters of resin are there in you softner (look your softner manual).
Disconnect generator plug, open the generator (get out the screw upper the box).
On the board there is a trimmer (look the draw). This trimme can set from 2 to 70 minutes timer. Every minutes that you programme can put disinfection to 1 lt of resin.
Close the box, connect the plug. The system it’s ready to start.
How it functions: during the softner rinse refill, the system can check if theres salt water if there give a elettrolisi voltage on the probe for the time that you set before. After this time the generator stop for 4 hours. After this 4 hour the system it’s ready again.

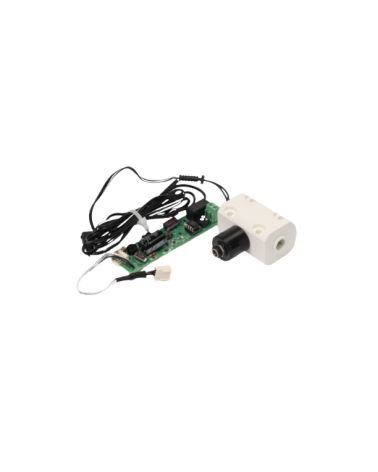

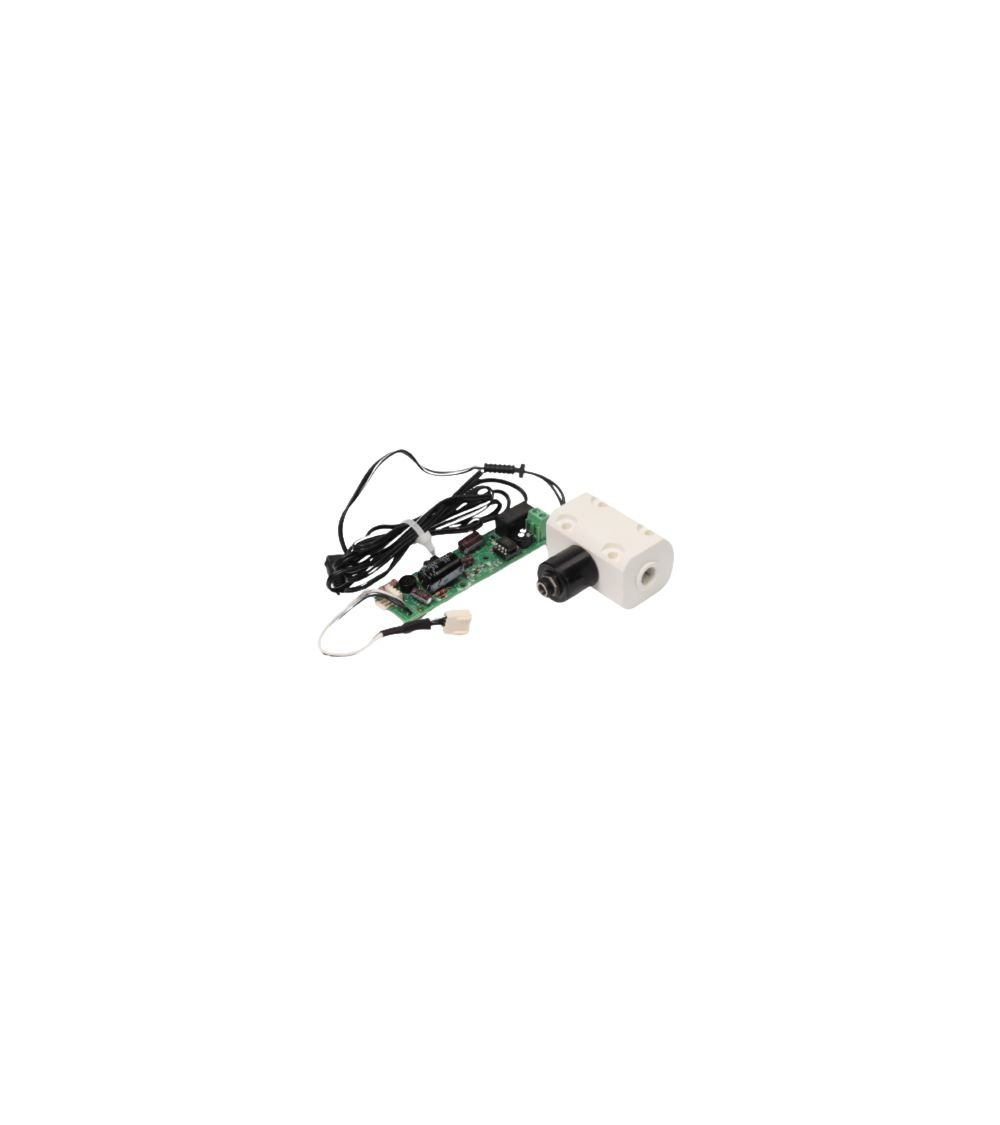

Components
- Electrical board
- Chlorine cell
- O-ring
- Connection wire
- Bolts
- Instruction manual
- Plastic box
